How to use Workflow Constants as Environment Information

After showing how workflow constants can help you with environment information in my last post How to Handle Environment Variables with Nintex Workflow, I am going to explain how workflow constants can be used in your deployment scripts.

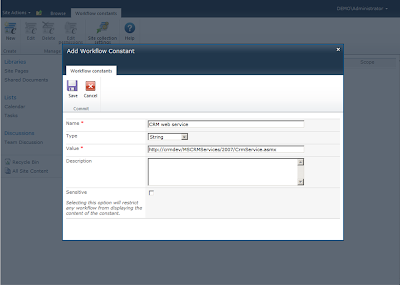

Starting of we create a workflow constant at website level. Therefore go to the Site Settings of the site where you want to use the workflow constant, then select Manage workflow constants under Nintex Workflow. Select New from the ribbon and create a workflow constant with the following settings:



Then open the command prompt and switch to the Nintex Workflow 2010 install folder. (Typically: C:\Program Files\Nintex\Nintex Workflow 2010). In order to export the workflow constant you have just created enter the following command:

1: nwadmin -o ExportWorkflowConstants -siteUrl [url to your site] -outputFile wfconst_dev.xml -includeSite
The output file wfconst_dev.xml contains all workflow constants which do exists at the selected site. As you can gues…

How to Handle Environment Variables with Nintex Workflow

A topic you sure will run across is how to handle environment variables when you deploy workflows designed with Nintex Workflow. The values are by definition just valid for one specific environment, and have to be changed in order to deploy the workflow into another environment. Example for environment variables are URLs of web services or service accounts, which are different between development, test and production system.

Basically, there are three ways how you can handle this information:

store the information within the workflow activitycreate a workflow variablecreate a workflow constant Most people start with alternative 1. The environment specific information is directly configured on the workflow activities. This has one advantage: You are pretty fast when you configure the activities the first time. But in the long run the disadvantages outweigh. After deploying the workflow from environment to the next stage, you have to update all affected activities. Beside the fact that t…
